Artares

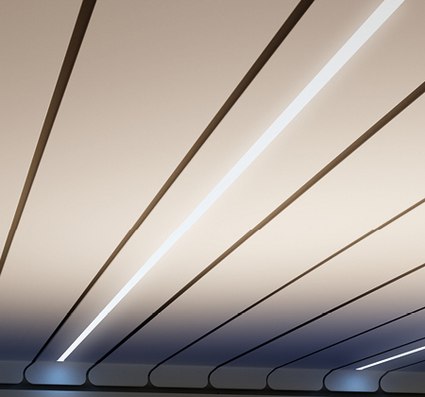

Shadow play with a fresh breeze - with Artares, weinor offers a special kind of patio roof "Made in Germany". Simply regulate your individual bioclimate yourself via the louvres’ angle of opening. Optional sensors enable automatic weather-dependent alignment of the louvres, enabling you to enjoy your stay on the patio well protected. The weather protection product can be designed individually as your patio sky with extras such as integrated vertical sun protection or LED lighting on louvres and frames.
At a glance
Low-noise, high-quality louvres
"Made in Germany"
Attractive design, versatile use
With optional integrated vertical sun protection
Various construction versions
With intelligent sensors
Product highlights
Low-noise, high-quality louvres

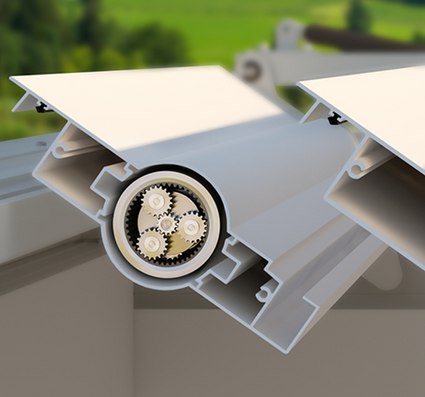

Static louvre with integrated drive
All-round protection, also from the sides
Outdoor-Living-System
Magic moments
Automatic weather protection
Safe guttering / Easy maintenance
Distinctive design
Attractive design, diverse operation
Very stable
Variable louvre alignment
Artares Picture Gallery
Product data
Individual unit
| max. width short side | 7 m |
| max. width long side | 4.5 m |
| Head clearance height | up to 3 m |
| Head clearance height with vertical sun protection | up to 3 m |
| Louvre rotation | up to 140° |
| Posts | 150 x 150 mm |
| Roof pitch | No visible pitch of the overall construction (louvres inclined internally for water drainage) |
Coupled unit
| max. width short side | 18 m (max. 4 units, coupling in longitudinal direction) |
| max. width long side | 24 m (max. 4 units, coupling in transverse direction) |
| Head clearance height | up to 3 m |
| Head clearance height with vertical sun protection | up to 3 m |
| Louvre rotation Up to 140° | up to 140° |
| Posts | 150 x 150 mm |
| Roof pitch | No visible pitch of the overall construction (louvres inclined internally for water drainage) |
Brochures
Ordering printed brochures.
Brochures can be ordered for home delivery:
Only available as PDF:
PDF | 5 MB
Louvred roof Artares: Good to know before you buy!
Benefit from the experience of our weinor retailers – up-to-date, professional and practical!
The weinor weather sensor solves this problem. At low temperatures, it ensures that the louvres do not close fully when the hand transmitter is activated, but travel to a slightly opened position. This avoids them freezing together, the louvres can still rotate without any problems.
The weinor weather sensor also operates when it rains. It transmits a signal to the motor so that the louvres close. After the rain shower, the louvres open automatically a little so that residual water can drain off. However, it is possible that a few drops may fall from the louvres onto the patio after a shower or in windy conditions. By the way, Artares meets the rain class 2 criteria: That is equivalent to 56 litres’ water per square metre within one hour.
Alignment of the louvres towards the building is variable. Depending on the position, they influence shadow casting and light exposure. In principle, we recommend an opening on the south side. The weinor retailer can provide individual advice here.

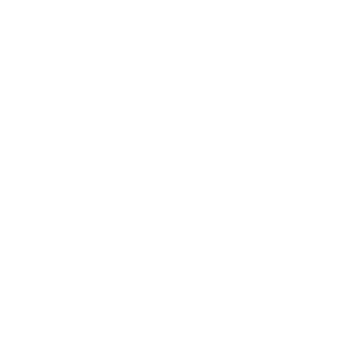

It is too hot for you under the roof? If so, simply open the louvres via remote control. The hot air then already flows outside through the roof. How much? That is your decision, depending on how the louvres are positioned. This is how you can regulate the bioclimate under your roof individually and quite naturally. You can also regulate the integrated sun guard fully in accordance with your needs. The louvres then open automatically as of a specified radiation intensity.
You can design your Artares louvred roof from weinor individually with an extensive choice of frame colours. You can choose between more than 50 standard colours and over 150 further RAL colours. However, the high sensitivity should be considered for white shades. If there are sources of potential soiling in the close vicinity (such as trees or a heavily frequented road), it may be preferable to select a different colour.

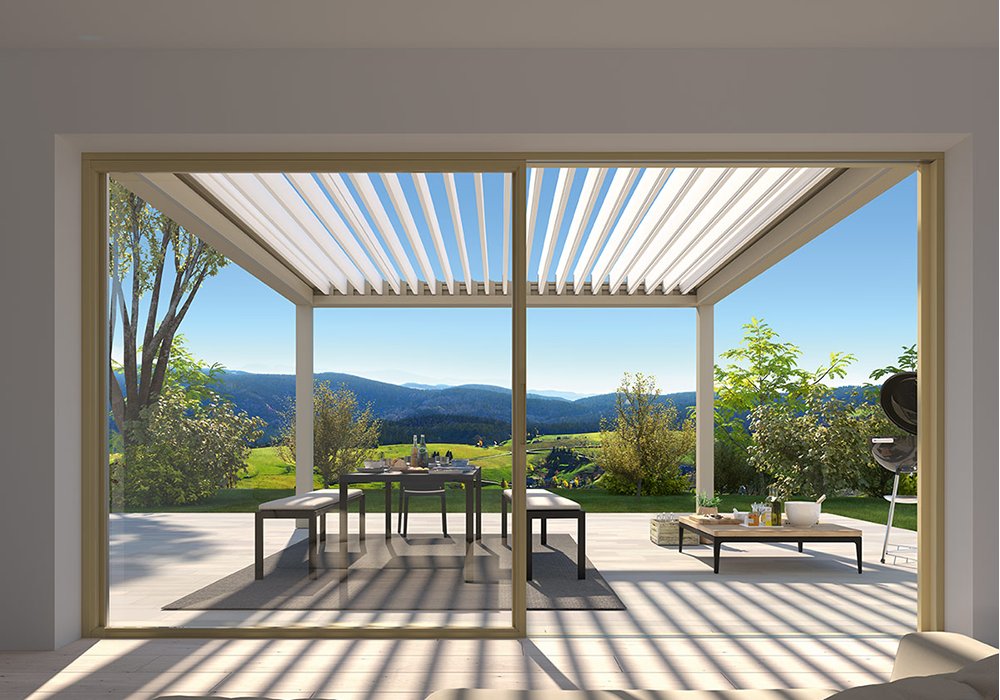

Within the course of a day or a season, light conditions are subject to constant change. If it gets too dark in a room, simply open the Artares louvres. More light is then cast into your living area. The rotatable louvres enable you to control the light exposure yourself easily.
You need weather-resistant outdoor furniture under your roof as there is a chance it will get wet. Depending on the severity and intensity of the rain it is always possible that water splashes under the roof.
Clean the construction with tap water (max. 40°C), soft cloths and, if necessary, slightly alkaline cleaning agents. Vacuum any coarse dirt or remove it with a soft broom. Do not use any strong chemical cleaning agents or mechanical aids such as pressure washers or hard brushes.
Artares: Good to know after you purchase
You can find helpful videos, the directions for use and further important information about your weinor product here.
weinor certificate of authenticity -
an original product with certainty
Every weinor product has been delivered with a certificate of authenticity since January 2018.
Ask your retailer for it!
Please note:
We reserve the right to make technical changes as well as changes in range and product portfolio.
The weinor product range can vary from one country to the next.
All the illustrated equipment is weatherproof outdoor furniture and accessories.
Coloured LED strips controlled by the weinor BiConnect serve exclusively to generate coloured light.
