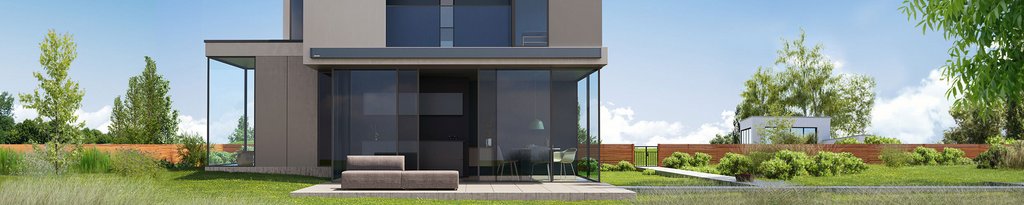

KUBATA

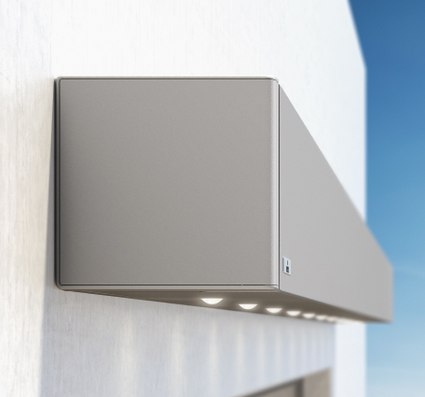

The cubic cassette awning

clear | consistent | cubic – Where does the building stop, where does the sunshade start? With the Kubata cassette awning, the transitions are smooth. With its cubic shape, it blends perfectly into modern house architecture as a stylish design element. The sun protection and facade form a balanced symbiosis that meets the highest aesthetic requirements.

At a glance

Checkmark

Cubic cassette awning with a clear, linear design

Checkmark

screwless look

Checkmark

integrated LED lighting possible

Checkmark

tried and tested wind lock safety device

Checkmark

Width x projection (max.): 6.5 m x 4 m

Checkmark

171 fabric patterns and more than 200 frame colours to choose from

Product-Highlights

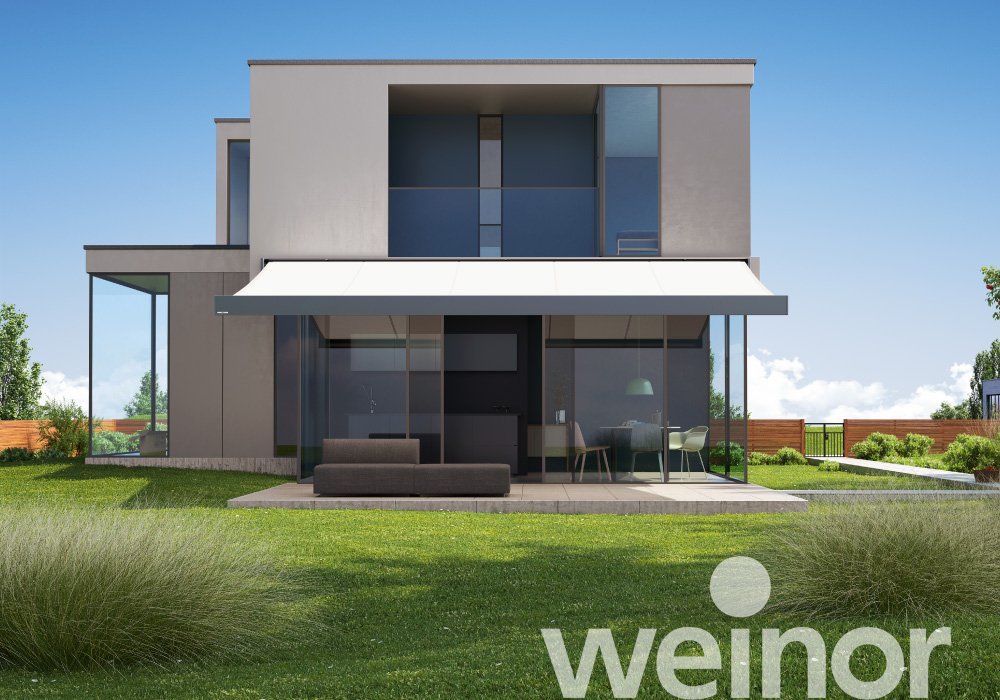

Modern cubic design

A cubic shape, clear design lines, an aesthetic delight – Kubata meets all the requirements of modern design.

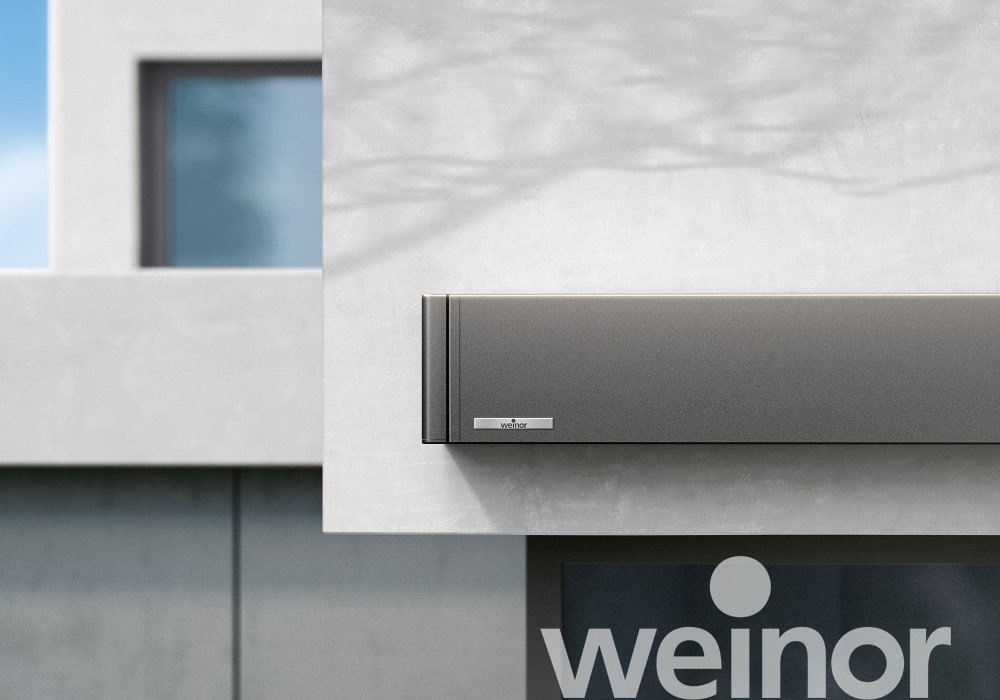

Screwless look

Screwless, smooth surfaces lend the Kubata an aesthetically appealing overall look.

Optimum protection against the wet and dirt

The all-round enclosed and robust awning cassette keeps the fabric and other technical components just as well protected from the elements as the controlled rain drain at the front of the drop profile. Kubata is fixed almost flush to the wall, so that no rainwater or dirt makes the house wall dirty under the awning cassette.

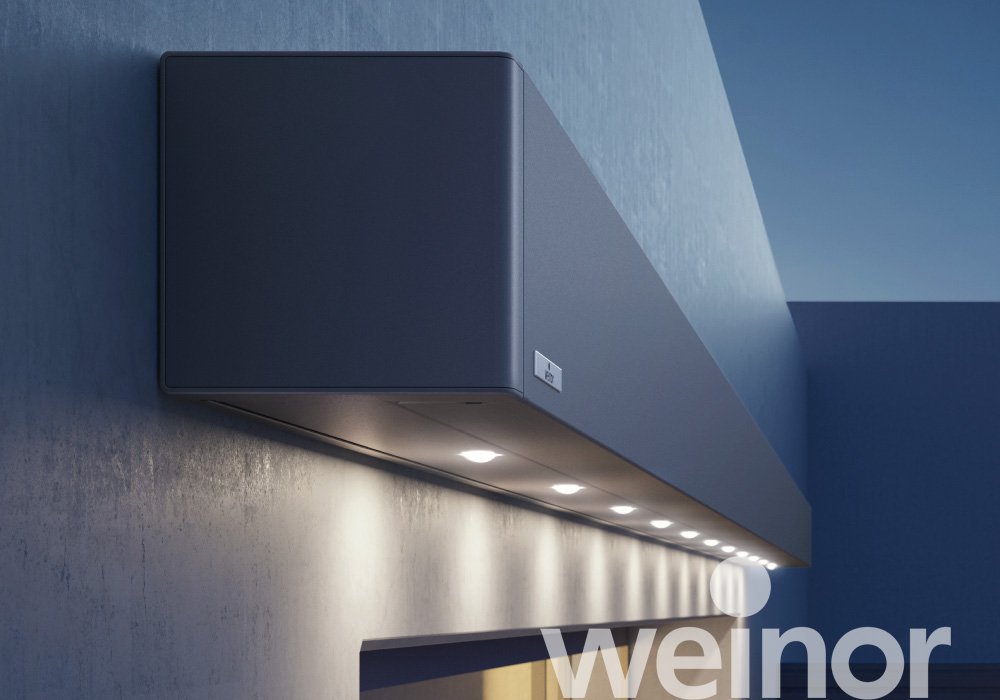

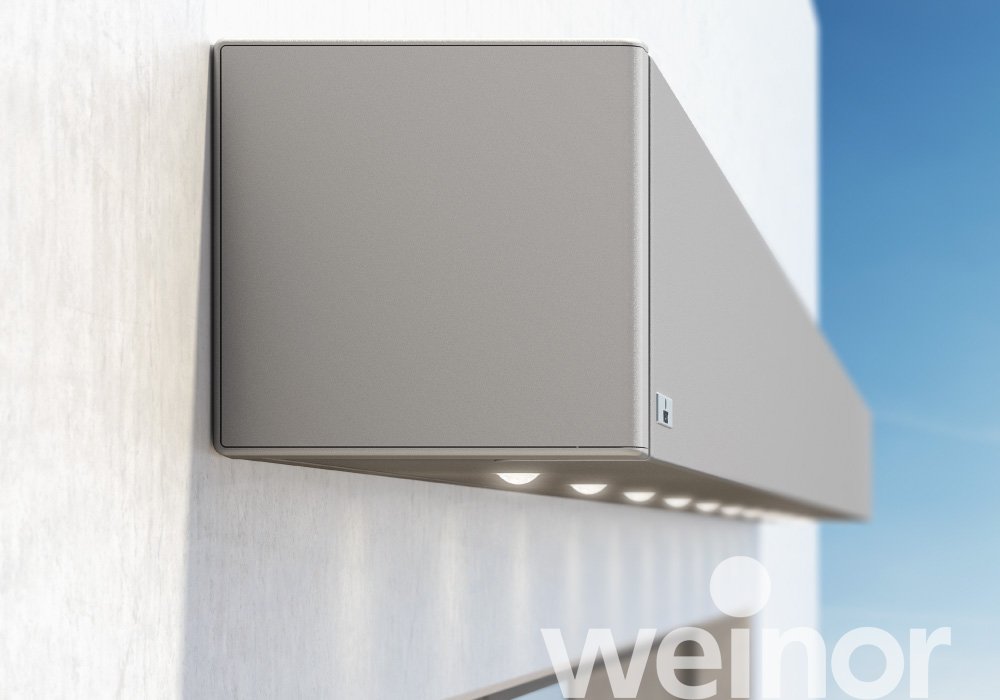

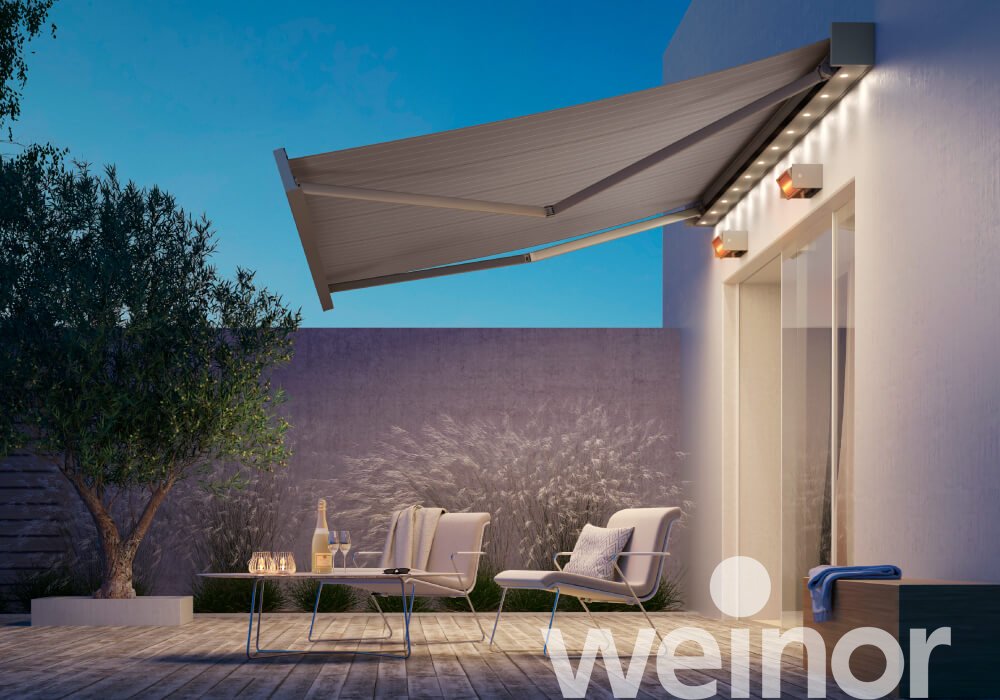

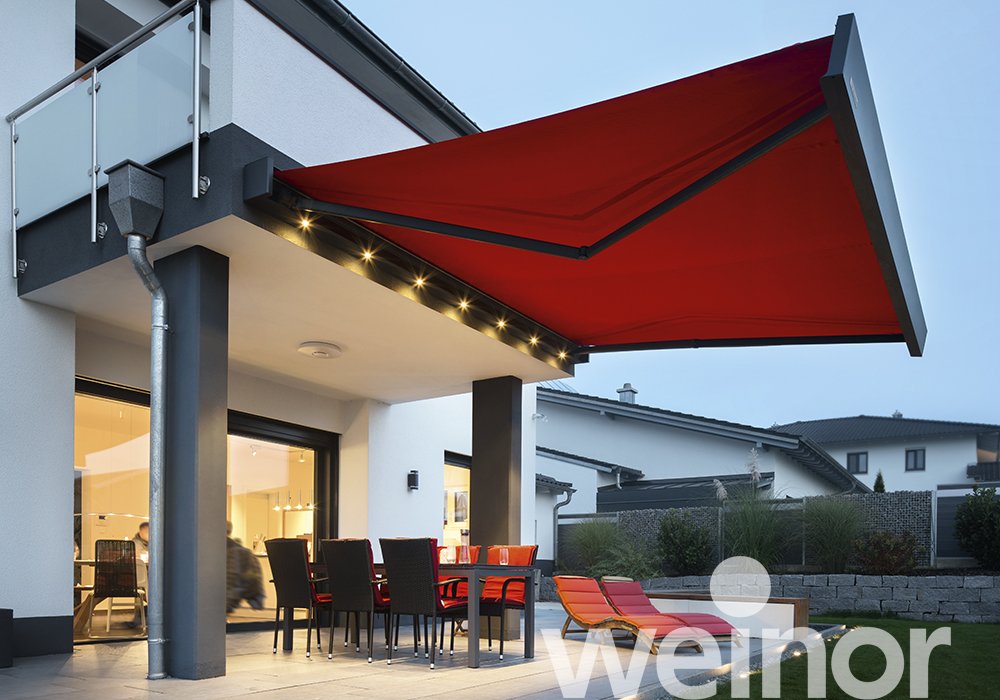

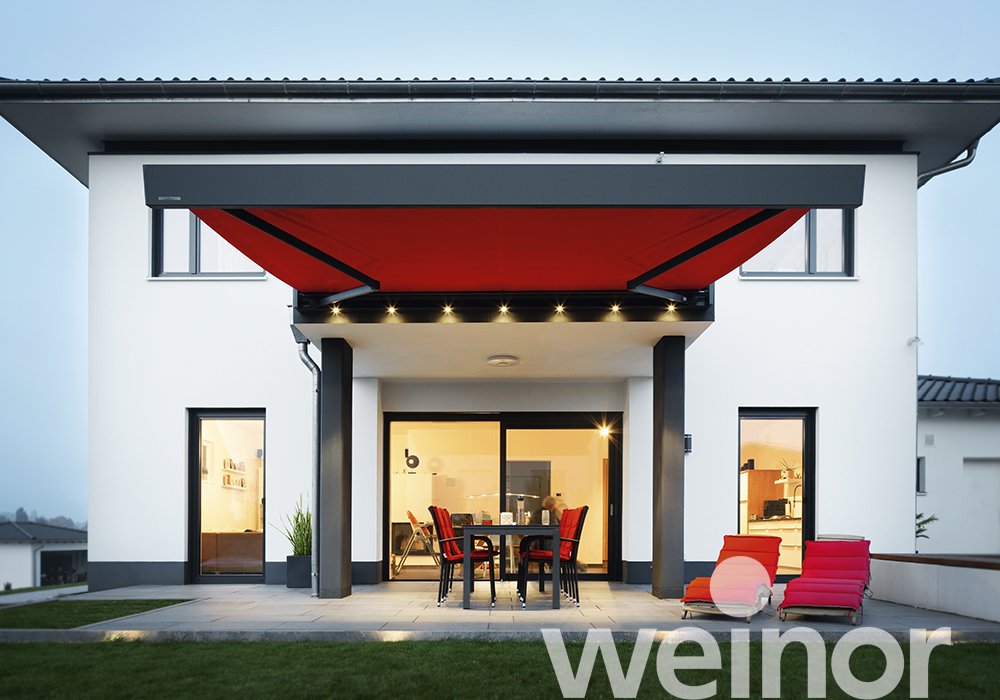

Integrated LED lighting

LED spotlights integrated into the cassette are available on request. The economical LEDs stand out due to their low energy consumption, and are dimmable via remote control using a hand transmitter or Smart Home via smartphone or tablet.

Innovative Opti-Flow-System®

The patented Opti-Flow-System® is equipped with a support profile, with which the awning fabric glides across its entire width, thereby ensuring the optimum positioning of the fabric.

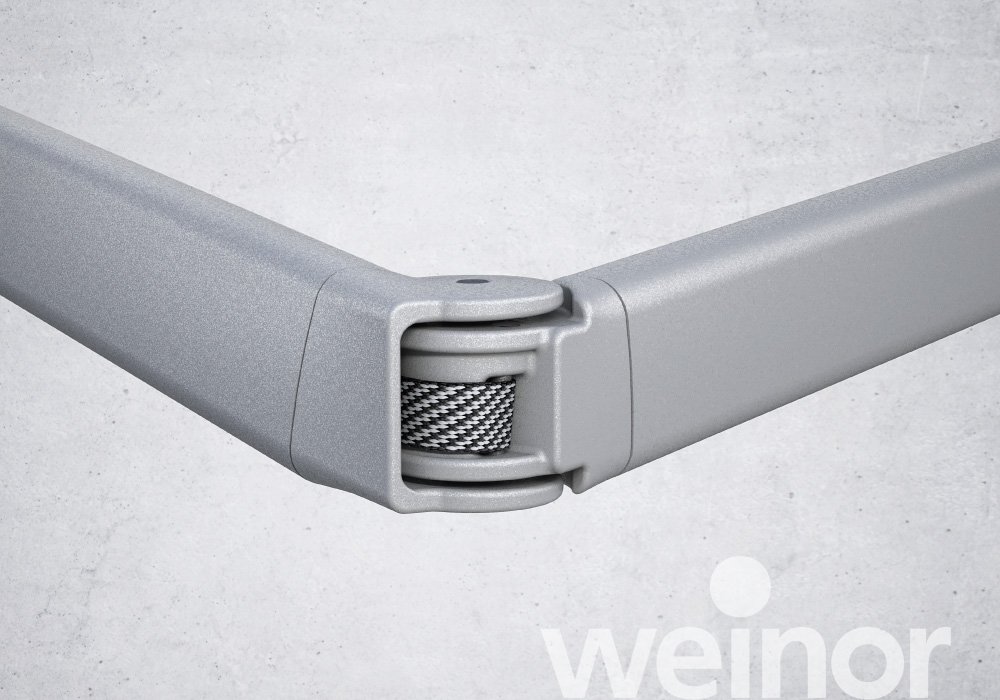

The low-noise weinor Longlife arm

The low-noise weinor LongLife arm, with its 10-year warranty, impresses with its very high tensioning strength. This ensures that the fabric is exceptionally well positioned.

Various installation options

In addition to the standard wall mounting, Kubata can also be easily fitted by ceiling or rafter installation if there are special construction requirements.

For high winds

The Kubata excels due to its high wind resistance. It easily withstands wind strengths of up to 5 on the Beaufort scale. The tried and tested wind lock safety device prevents the awning from lifting up during gusts of wind from below.

How to find matching accessories

As a weinor retailer, we provide comprehensive advice and bring your desired product to your home. We look forward to serving you!
1 Select your dream model.
2 Arrange an appointment! with a retailer
3 Purchase and installation via the retailer
YOUR
WEINOR
RETAILER

Comprehensive expert advice fully in keeping with your wishes and ideas.

Precisely tailored on-site planning with prepared costs and deadlines.

Safe installation by your trained weinor retailer.

Top support and competent service, also post-purchase.

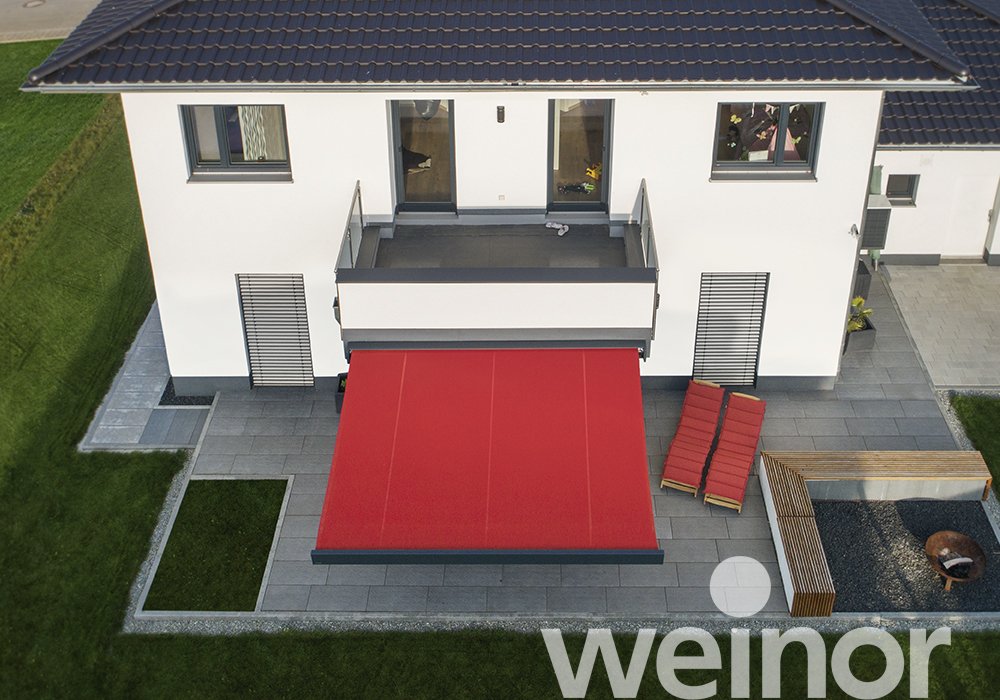

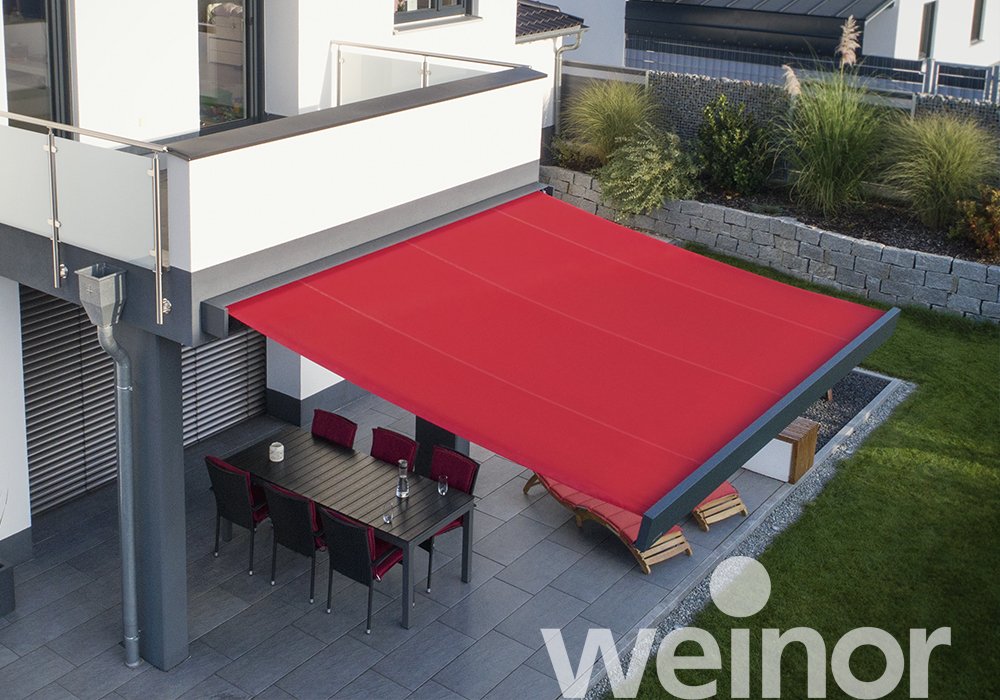

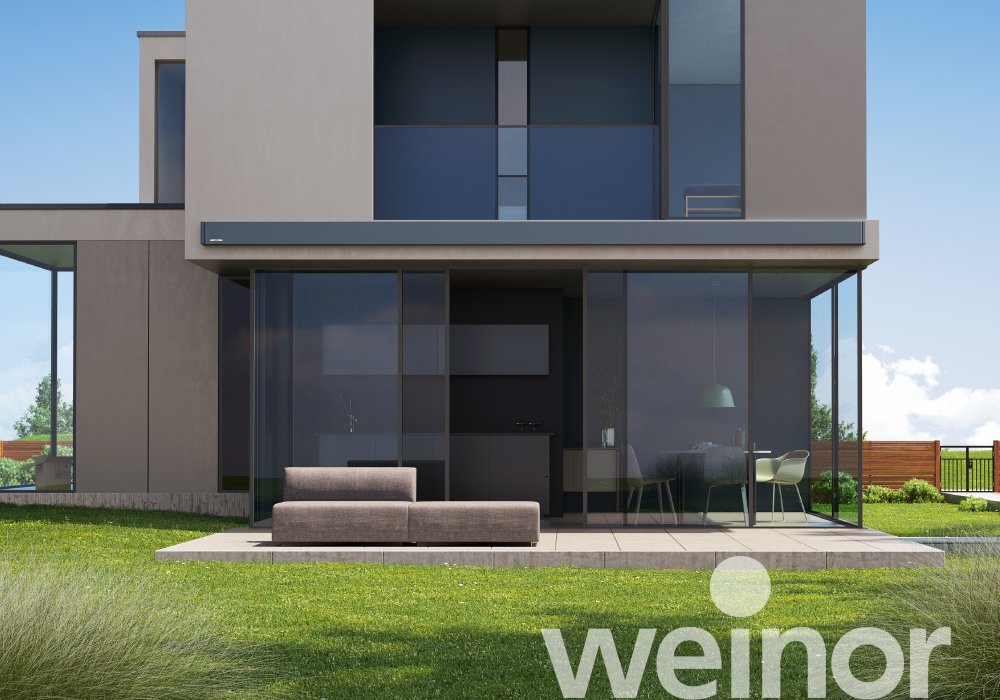

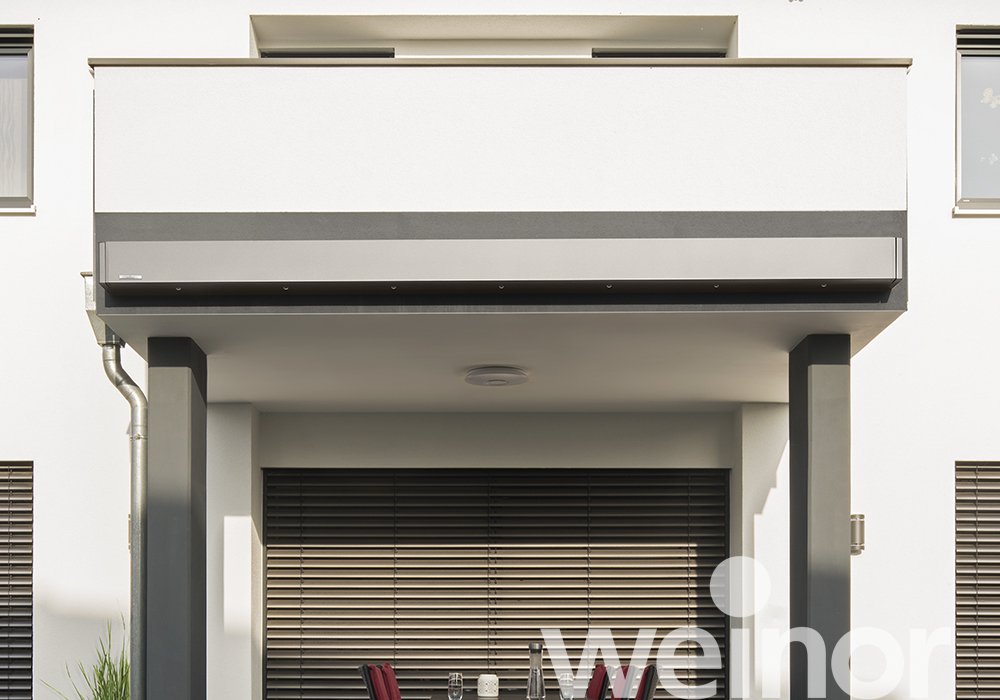

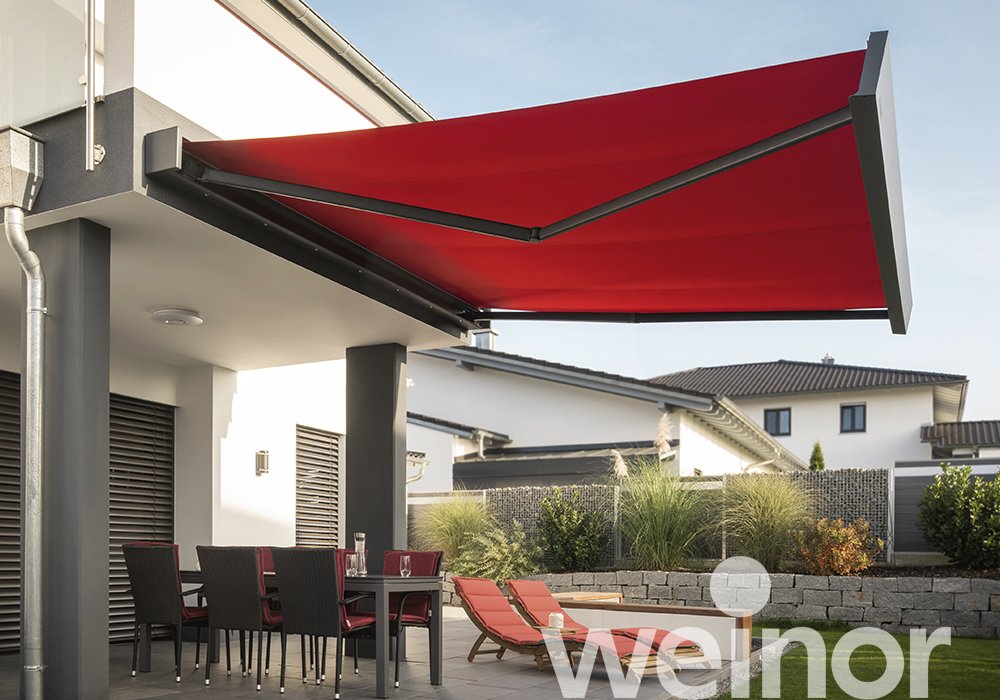

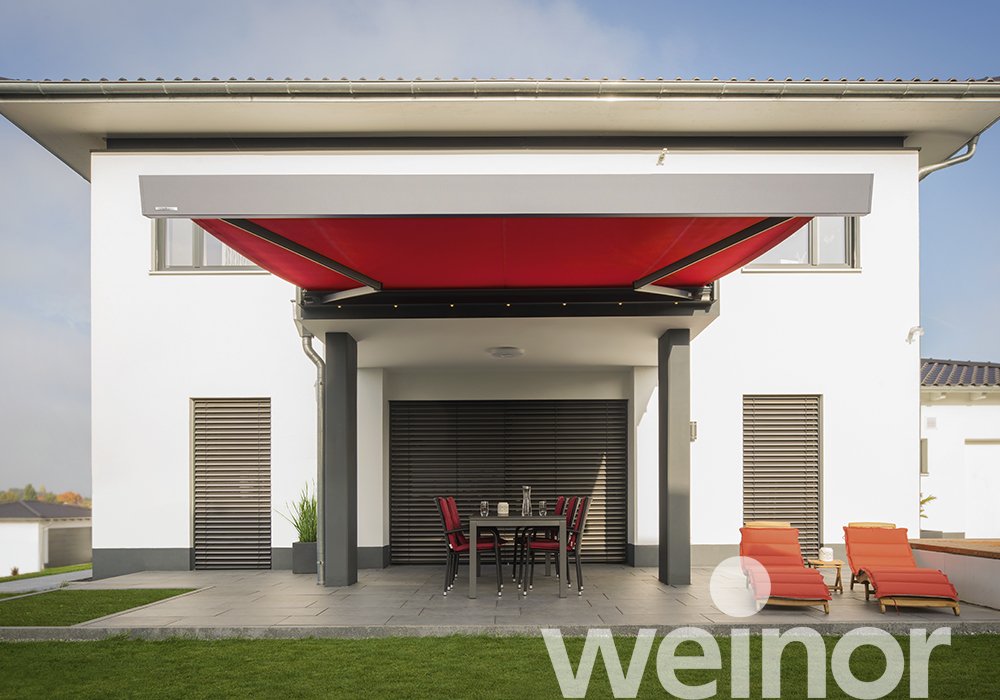

Kubata image gallery

Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
German Design Award Winner 2019 weinor
Awning weinor Kubata
Awning weinor Kubata
iF Design Award 2019 weinor Kubata
Reference page
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata
Awning weinor Kubata

Product data

Kubata/LED

Max. width 7 m with 3.0 m projection
Max. projection 4 m with 6.5 m width
Cassette dimensions 205 x 210 mm
Motor drive as standard
Wind protection tested to wind force 5 (Beaufort)
Adjusting the inclination 5° bis 40°
Installation alternatives Can be installed on walls, ceilings and rafters

Kubata / LED: Good to know before you buy!

Benefit from the experience of our weinor retailers – up-to-date, professional and practical!

Weiße Schneeflocke
What to do when it's freezing?
Chevron Down

It is better not to operate the awning in frosty conditions to prevent damaging any frozen components. However, if this is necessary in practice: it is better to keep an eye on the system! So you can stop quickly if something is frozen and prevent any damage. Our tip: Switch off the weather sensors on your product in frosty conditions to prevent it retracting and extending when you are not at home.

weinor Icons Wind
And in windy conditions?
Chevron Down

Awnings can also withstand higher wind speeds (please see the product data for details). Despite this, it is better to retract the awning before strong winds develop and keep it closed. This reduces the risk of your awning being damaged by strong gusts of wind. If you supplement your system with a wind sensor, it will do this job for you.

weinor icon markise naesse
It’s best to avoid wetness
Chevron Down

The awning’s basic function is to protect against sunlight and heat. It’s better to retract your sun protection when it’s raining. As wet fabrics may develop more wrinkling, water and mildew stains. It is also possible that honeycomb patterns may appear. If your awning does happen to get damp, it is best to extend it to dry out as soon as the weather has improved

Rainwater in the awning
Chevron Down

If you nonetheless have to retract damp fabric at any time, rainwater ingresses the inside of the awning. And water can also penetrate a closed awning – in particular if it is installed on the side of the building which is exposed to the weather. However, your fabric is not affected in this case: the water collects in the awning’s drainage guttering and specifically drained away from it. Under certain circumstances, this can also take place if you extend your construction again after it has rained.

weinor Icons Wetter
Fabrics react to the environment
Chevron Down

Fabrics reach to external conditions. If it is dry or damp, warm or cold outside, the awning fabric may shrink or expand – only minimally of course. The size of the system also plays a part. These external factors may cause waves and folds in the fabric. These folds are quite normal though and do not damage the awning.

weinor icon markise falten
Wrinkling – no need to worry!
Chevron Down

Some irregularities simply cannot be avoided due to environmental and production reasons – for example, creases, bulging and wrinkling due to the different winding diameter on the roller tube. Rippling and overstretching in the seam area or honeycombing may also occur. But we can reassure you: you are dealing with a high-performance fabric – small blemishes do not impair its functionality. They are therefore not a reason for rejection or grounds for complaint. More information at https://www.weinor.com/fabric_qualities.

weinor icon markise
Quiet but not silent
Chevron Down

What one person finds loud and disturbing is barely perceptible to another. This also applies to the creaking noises your product makes. When the temperature changes, your awning’s material expands or contracts – a natural process that cannot be avoided. Noise also occurs when retracting and extending the awning, which can be louder or quieter depending on the building situation. In any case, the creaking and running noises do not affect your awning’s functionality.

weinor icon markise pflege
Keeping an eye on the product
Chevron Down

You should take a closer look at your awning every now and then: does everything look good and is it all firmly in place? If you notice anything wrong, contact your retailer for maintenance. It is advisable to clean your construction at least once a year, or even twice a year in the case of heavy use. Please refer to our “10 tips on awning fabrics” brochure for this.
Our tip: If you are not at home for a longer period of time, retract your awning and simply switch the automatic system to “OFF”. This will avoid the awning from being retracted and extended unsupervised.

weinor icon markise
The awning that grows with you
Chevron Down

If, after installing your awning, you find that you would like to have even more comfort after all, additional products are available within weinor’s modular system and are easy to retro fit. Whether it is an automatic weather system, a heating system, lighting, a new fabric or vertical sun protection for the pergola awning – everything fits perfectly together. The additional options do of course have technical limits. Fortunately, these are just exceptions, which we are working on …

weinor icon Markise
Reliably weather sensitive
Chevron Down

Even if you don't have your awning in sight, weather sensors ensure that your radio-controlled awning can automatically extend when the sun is shining and retracts again when it is rainy or windy. As a result, the climate on the patio and indoors remains more pleasant. The risk of water or storm damage to your product can be reduced with the right sensor.

Compensating joints
Chevron Down

For an awning to work properly, all the components must work together in harmony. Even minor unevenness on the house wall can mean that awnings do not run as smoothly as they should. weinor awnings react to the condition of the installation surface and compensate for this if necessary. The joints that then appear do not have a negative effect on your awning’s function though – quite the opposite!
